Gungnirdarts - Gen 5 - Freya

Gungnirdarts DIY Kit

The Gungnir Dartstracker utilizes a Raspberry Pi 4, Bluetooth, and four OV9732 camera modules. It's offered as a DIY kit that includes all the necessary components to assemble the complete ring, including software, except for the 70 cm circular MDF backplate. This allows us to ship the entire kit in a relatively small box worldwide. The DIY kit is available in the webshop. Order yours today !

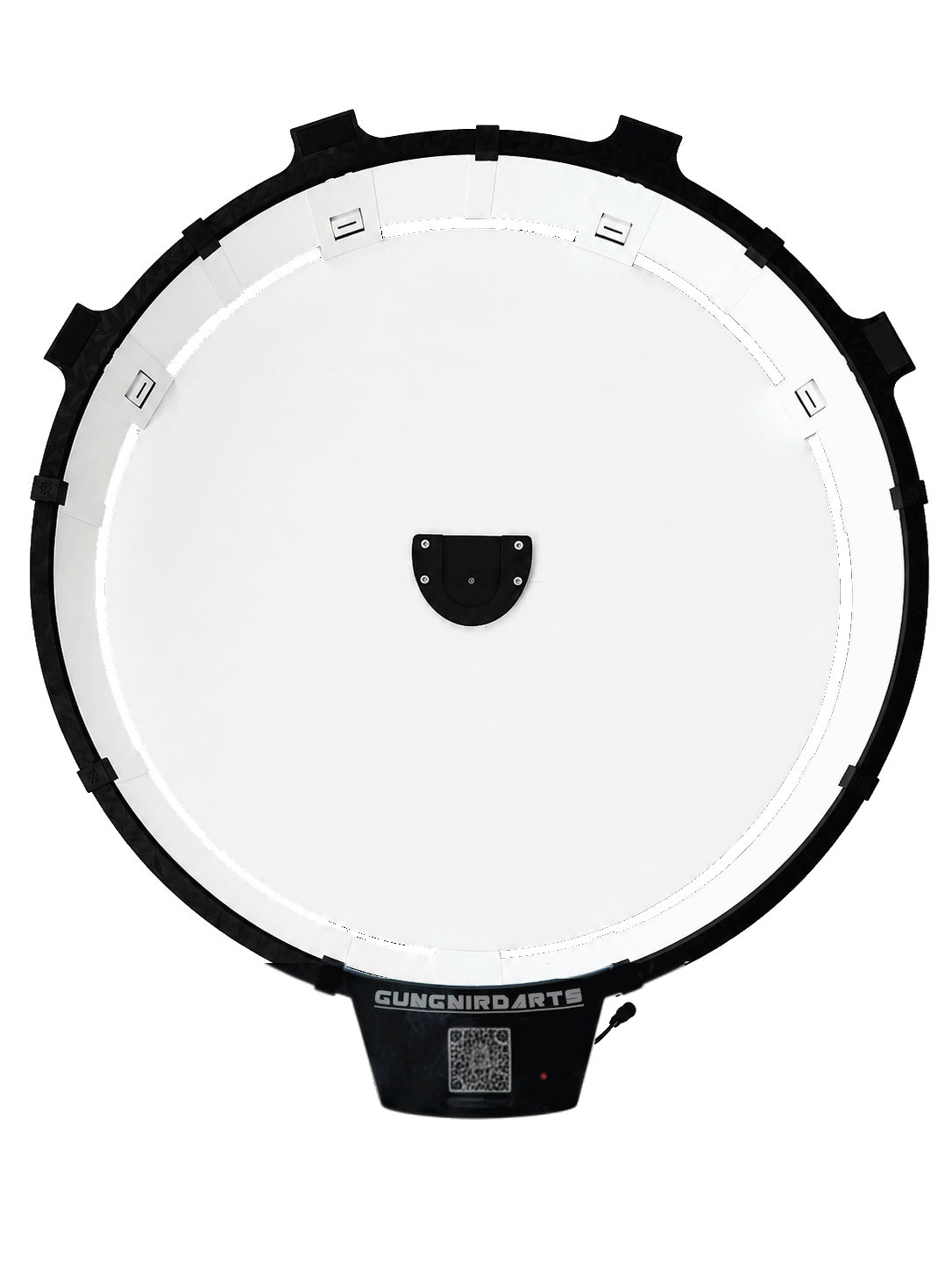

DIY Gen 5 - Freya - Assembly Video

The Gen 5 build is like the Gen 2-4 builds except for the smaller form factor. It requires a circle backplate with a diameter of 70 cm. Further all the elements are revised and adapted to this smaller size. The connection between the ring elements is better now with a bridge between the elements. Due to the more compact size the whole ring feels much sturdier than the former Gen 2-4 80 cm diameter version.

DIY Gen 4 - Assembly Video

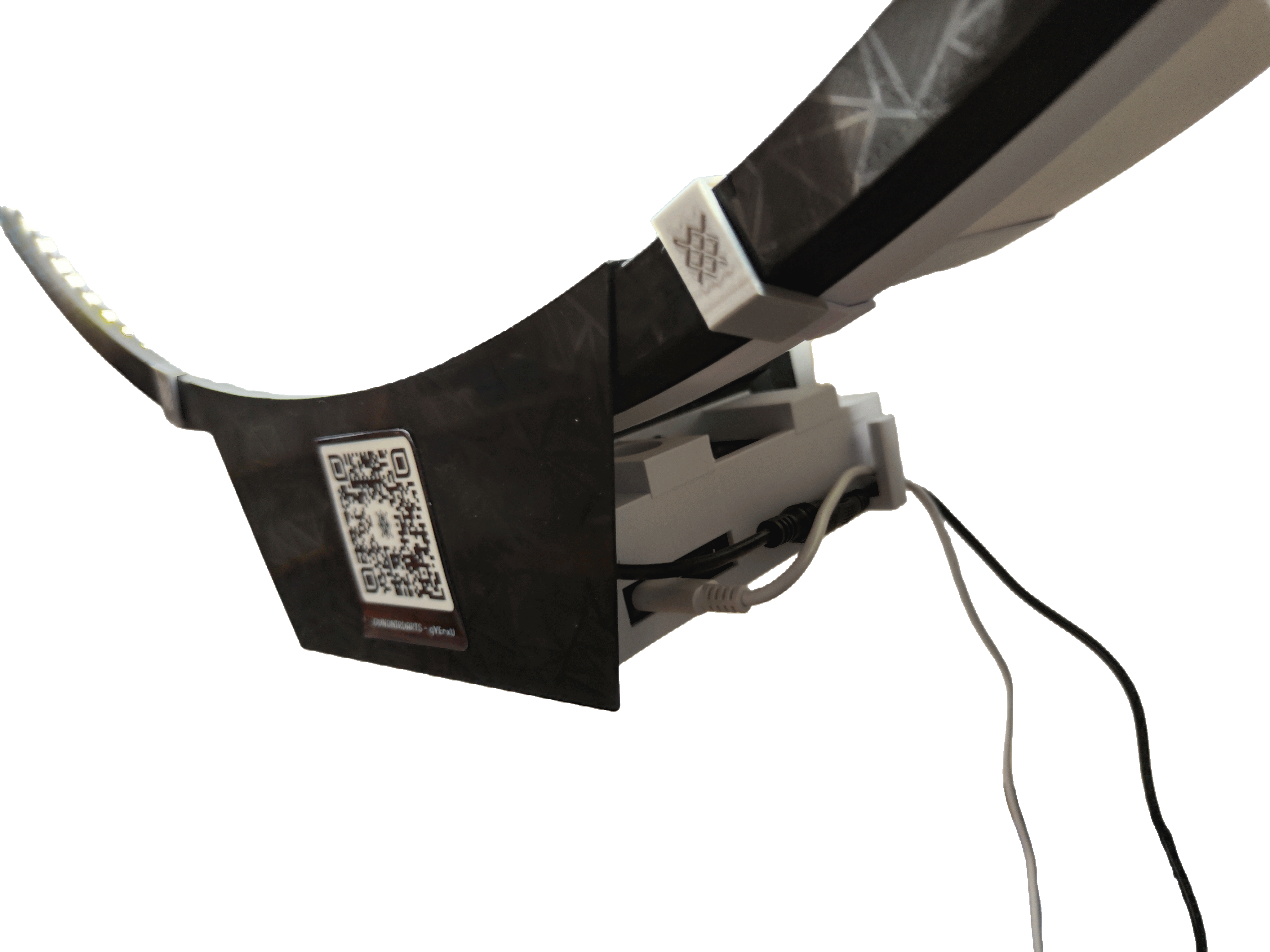

The Gen 4 build is exactly the same as the Gen 3 except for the last part where the Raspberry Pi is attached to the surround. The Gen-4 has a case that's attached to the bottom surround foot where the raspberry fits in, so no need to use the tie wraps anymore. An updated video will follow later, but for now you can follow the Gen-3 instructions below. Attaching the case probably speaks for itself.

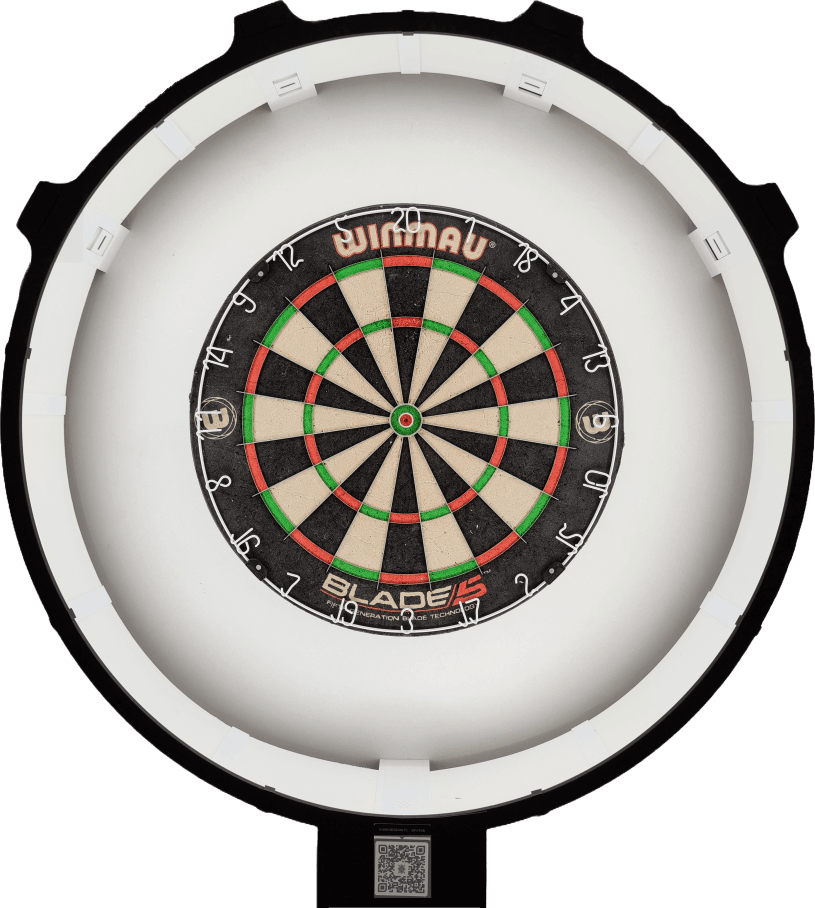

DIY Gen 3 - Assembly Video

A step-by-step guide for assembling the Gen 3 version of the Dartstracker from the DIY kit. Follow the video executing every step in the same order as in the video. Important: Read the extra instructions below the video.

Important instructions:
- Attach a surround mount directly after a ring element is added, not when the complete ring is assembled.
- Make sure the ring is attached to a backplate before inserting the surround plates under tension to prevent damaging elements.
- When the calibration fails after assembly, first check if the cameras are attached to the same USB ports as shown and indicated in the video. If this is the case and calibration still fails, send the diagnostics PDF (Settings..Gungnir Dartstracker..Diagnostics) to support@gungnirdarts.com

DIY Gen 2 - Assembly Video

A step-by-step guide for assembling the Gen 2 version of the Dartstracker from the DIY kit.

Important: When the calibration fails after assembly, first check if the cameras are attached to the same USB ports as shown and indicated in the video. If this is the case and calibration still fails, send the diagnostics PDF (Settings..Gungnir Dartstracker..Diagnostics) to support@gungnirdarts.com.
